Power BI RLS Implementation & Validation

Audience & Scope​

Audience:

  • Power BI Developers
  • BI Analysts
  • Report Owners

Scope: This document explains the implementation and validation of Static and Dynamic Row-Level Security (RLS) in Power BI Desktop and Power BI Service.

What is Row-Level Security (RLS)?​

Row-Level Security (RLS) restricts data at the row level so users only see data they are authorized to view.

How RLS works:

  • Defined in Power BI Desktop
  • Enforced in Power BI Service
  • Applied through roles

Prerequisites Before Implementing RLS​

Required​

  • Proper star schema design
  • Fact tables connected to dimension tables
  • Correct relationships and filter directions
  • Clear understanding of access-controlling columns
    • Examples: Region, BusinessUnit, PropertyID

Important​

Workspace Admins bypass RLS by default. Always test RLS using Viewer or Member roles.

Types of RLS​

  • Static RLS → Hard-coded filters
  • Dynamic RLS → Filters based on logged-in user
    • USERPRINCIPALNAME() – Returns the user's email (recommended for Power BI Service)
    • USERNAME() – Not reliable in Service scenarios

Before implementing RLS, ensure:​

Data Model Readiness​

  • Fact tables are connected to dimension tables
  • Relationships are correct (direction matters)

Access Clarity​

  • Know which column controls access
    • Example: Region, BusinessUnit, PropertyID

Static RLS​

What is Static RLS?​

  • Data access rules are hard-coded
  • Each role is created manually
  • Users assigned to a role always see the same data

Example​

  • Role A → Region = East
  • Role B → Region = West

Design Decisions​

  • Which column controls access?
  • Where does that column live?

✅ Best Practice​

  • Use a dimension table column
    • Example:
      • Table: DimRegion
      • Column: Region

❌ Avoid​

  • Using fact table columns for RLS

Steps to Implement Static RLS​

1. Open Power BI Desktop​

  • Go to the Modeling tab
  • Click Manage roles

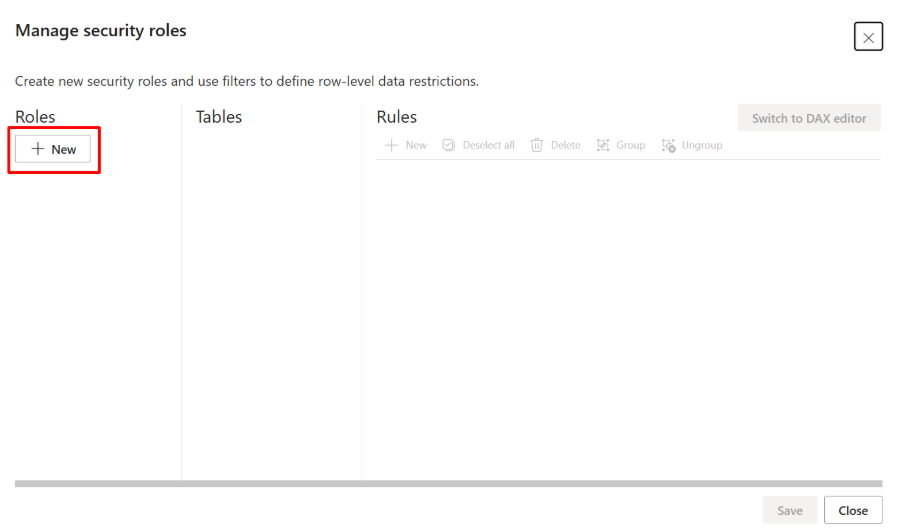

2. Create a New Role​

  • Click New

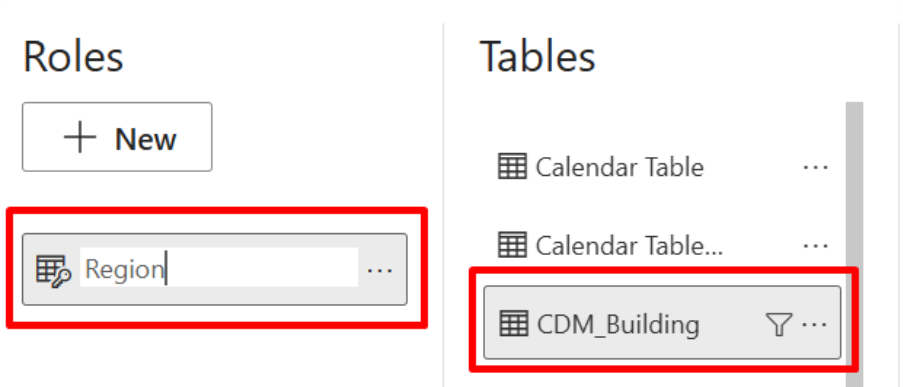

  • Rename the role
    • Example: East_Region_Role

    Use business-friendly names so admins understand the purpose later

Apply the Static Filter​

  • In Manage roles, select the table where the security column exists
  • In the filter box, write a boolean DAX expression
    DimRegion[Region] = "East"
  • Only rows where Region = "East" will be visible

How the Filter Works (Important Concept)​

  • Power BI filters the dimension table
  • The filter flows through relationships
  • Fact tables are automatically filtered

Validate the Role in Desktop​

Never skip this step

  • Go to Modeling → View as
  • Select the respective role
  • Click OK
  • Review visuals:
    • Only the respective region data should appear

If Data Looks Wrong​

  • Check relationships
  • Check column values (case sensitivity, extra spaces)

Save and Publish the Report​

  • Click Save
  • Click Publish
  • Publish to the required workspace

📌 Note:

info

RLS does not work locally after publishing — it is enforced in Power BI Service.

Assign Users to Roles in Power BI Service​

  • Open Power BI Service
  • Navigate to the Workspace
  • Locate the Semantic Model (Dataset)

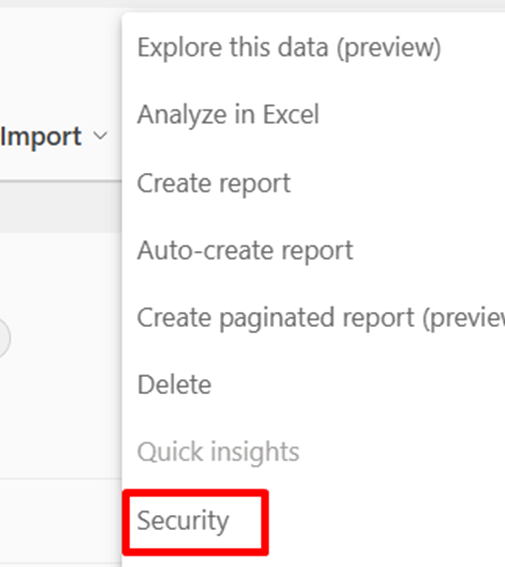

  • Click More options (⋮) → Security
  • Add users or Azure AD Groups to the role
  • Click Save

✅ Static RLS is now active

When Static RLS Is a Good Choice​

✅ Recommended When​

  • Small number of roles
  • Stable access rules
  • Limited number of users

❌ Not Recommended When​

  • Large organizations
  • Frequent access changes
  • Complex access logic

What Is Dynamic RLS?​

Dynamic RLS restricts data based on the logged-in user.

  • A single role supports multiple users
  • Access is driven by a security mapping table
  • Evaluated using DAX

📌 Notes:

  • UserEmail must exactly match the Power BI login email
  • A user can have multiple rows for multiple regions or entities

Load the Security Table​

The security table can be loaded from:

  • Excel
  • SQL Server / Database
  • SharePoint list
  • Power BI Dataflow

Ensure Data Quality​

  • No leading or trailing spaces
  • Correct email casing
  • No duplicate or invalid values

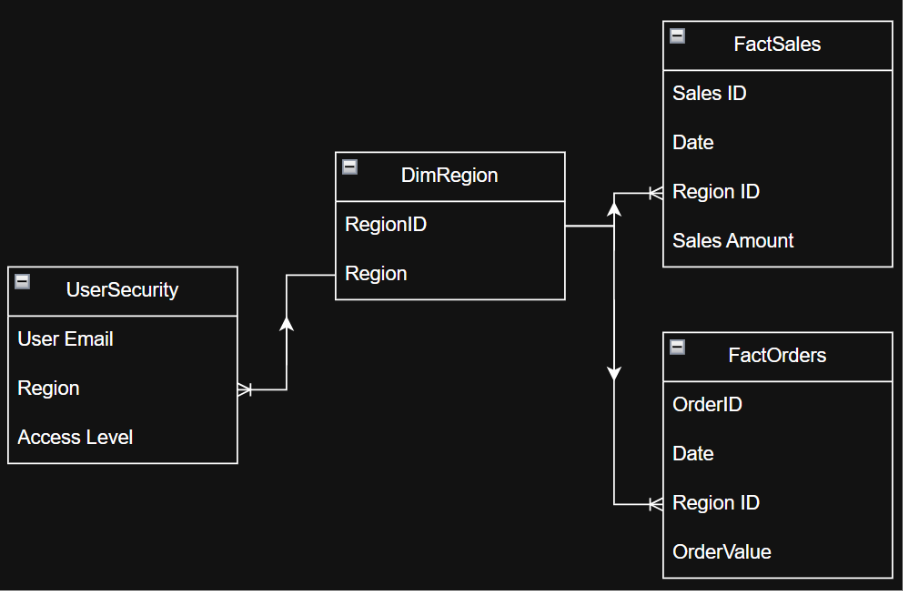

Create Relationships​

  1. Go to Model view
  2. Create a relationship:
    • UserSecurity[Region] → DimRegion[Region]

Relationship Configuration​

  • Cardinality: Many-to-One
  • Cross filter direction: Single
  • Status: Active

📌 This relationship allows RLS filters to propagate to fact tables.

Create the Dynamic RLS Role​

  • Go to Modeling → Manage roles

  • Click Create

  • Name the role (example: Dynamic_Region_RLS)

  • Select the UserSecurity table

  • Add the following DAX filter:

    UserSecurity[UserEmail] = USERPRINCIPALNAME()

✔ This ensures:

  • Power BI captures the logged-in user
  • Only rows belonging to that user remain visible
  • Allowed values propagate through relationships to dimension and fact tables

How Dynamic RLS Works Internally​

  1. User logs into Power BI Service
  2. USERPRINCIPALNAME() returns the user's email
  3. Power BI filters the UserSecurity table
  4. Allowed dimension values (Region / BU / Property) are identified
  5. Related fact tables are automatically filtered

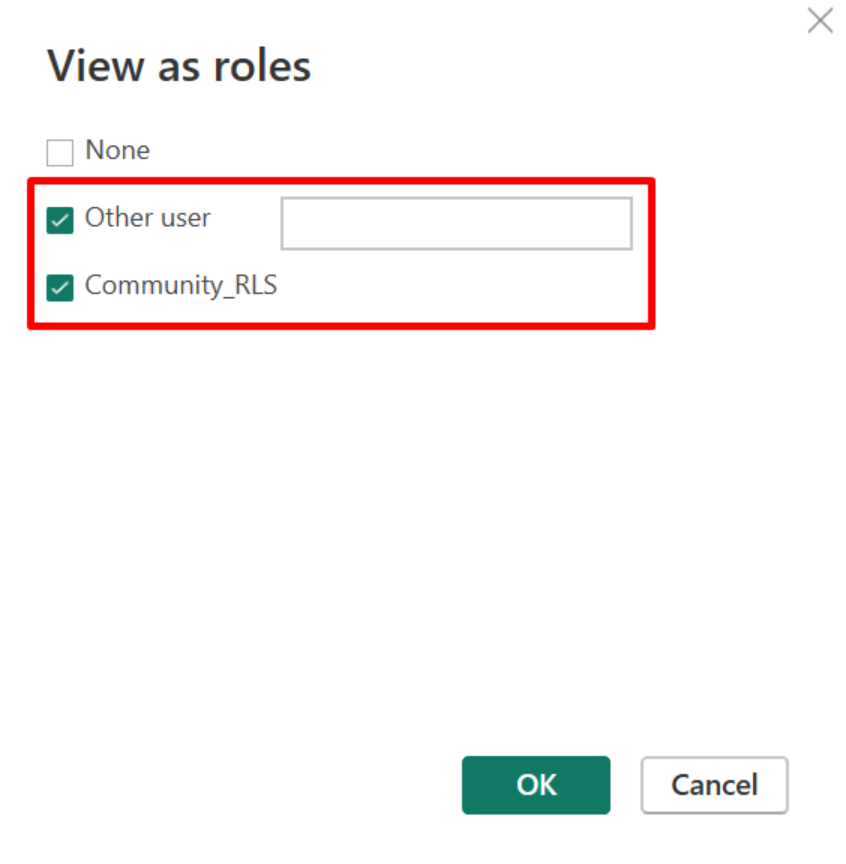

Test Dynamic RLS in Power BI Desktop​

  1. Go to Modeling → View as
  2. Select the Dynamic RLS role
  3. Enter a test email address
  4. Click OK
  5. Validate the data shown in visuals

📌 Always test with:

  • Valid user
  • User with multiple access rows
  • Invalid user (should see no data)

Publish the Report​

  1. Save the report
  2. Publish to Power BI Service
  3. Open the target Workspace

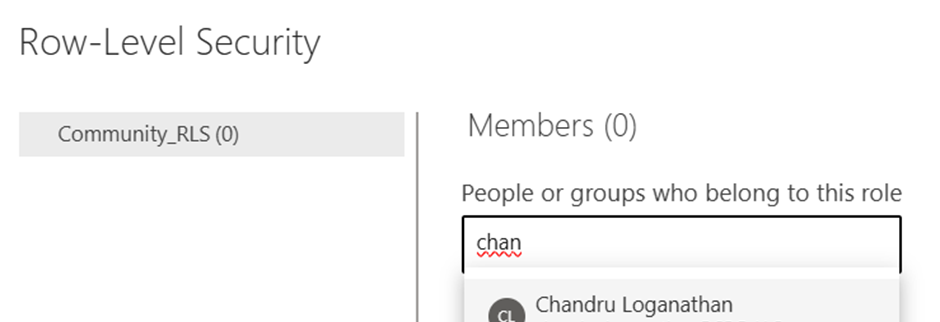

Assign Users to the Dynamic RLS Role​

  1. In Power BI Service, open the Semantic Model (Dataset)
  2. Select Security
  1. Add:
    • Individual users, or
    • Azure AD Groups
  2. Click Save

📌 Every secured user must be assigned to this role.

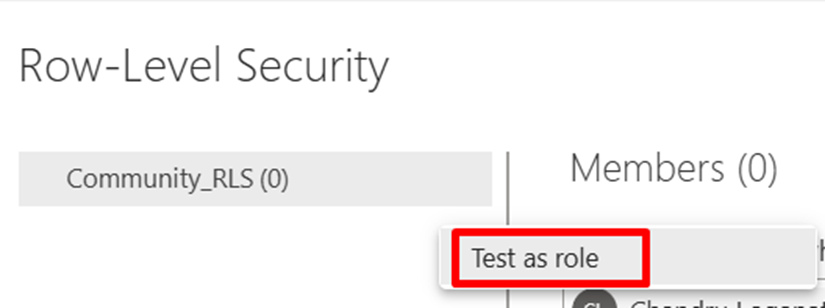

Validate Dynamic RLS in Power BI Service​

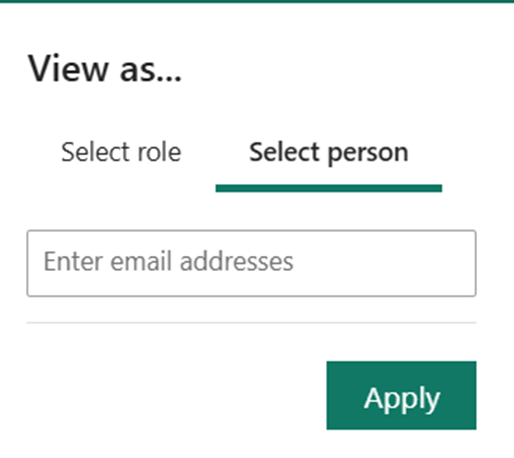

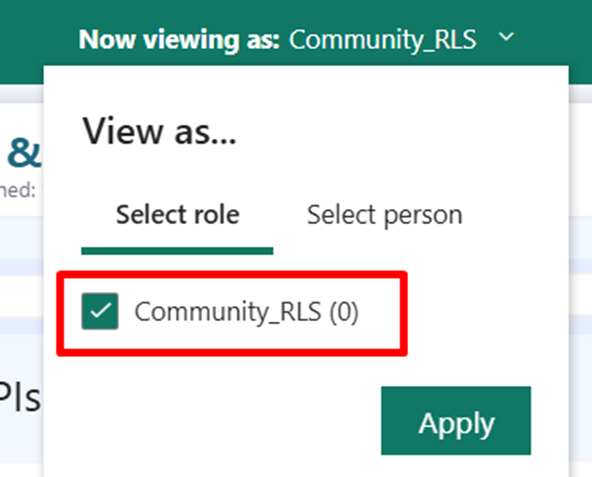

  1. Select View as
  2. Choose the RLS role
  3. Enter the user's email ID
  4. Validate data visibility matches expectations

Best Practices​

  • ✔ Apply RLS only on dimension tables
  • ✔ Prefer Dynamic RLS for scalability
  • ✔ Use Azure AD Groups instead of individual users
  • ✔ Keep security logic simple and readable
  • ✔ Maintain the security table centrally
  • ✔ Avoid bi-directional relationships unless absolutely required

Common Issues & Fixes​

User Sees No Data​

  • ✔ Email mismatch between Power BI login and security table
  • ✔ Relationship missing or inactive
  • ✔ User not assigned to the RLS role

User Sees All Data​

  • ✔ User is Workspace Admin
  • ✔ Role not assigned in Power BI Service

What Is an AD Group?​

An AD Group (Azure Active Directory / Microsoft Entra ID Group) is a centrally managed collection of users.

Uses in Power BI​

  • Assign RLS roles
  • Control workspace access
  • Manage app permissions

📌 Instead of adding users individually, add one AD Group.

Why AD Groups Are Important​

Without AD Groups​

  • Manual user management
  • High maintenance
  • Risk of missing access updates

With AD Groups​

  • Centralized access control
  • Scalable security
  • Enterprise best practice

Example: Add Finance_ReadOnly_Group to an RLS role → all finance users get access automatically.

Where Are AD Groups Created?​

AD Groups are created in Microsoft Entra ID (Azure AD).

Create AD Group via Azure Portal​

  1. Go to portal.azure.com
  2. Sign in with Admin credentials
  3. Navigate to Microsoft Entra ID → Groups
  4. Click New group

Benefits​

  • ✓ Centralized access management
  • ✓ Reduced maintenance
  • ✓ Enterprise-grade security

Security Validation Checklist​

  • ✓ Tested with valid user
  • ✓ Tested with multi-access user
  • ✓ Tested with no-access user
  • ✓ Tested in Power BI Service
  • ✓ Verified non-admin behavior
  • ✓ AD Group assignment validated
